Fire Rating Available, GPW Glass Ordered to your size. Anchors depending on wall construction

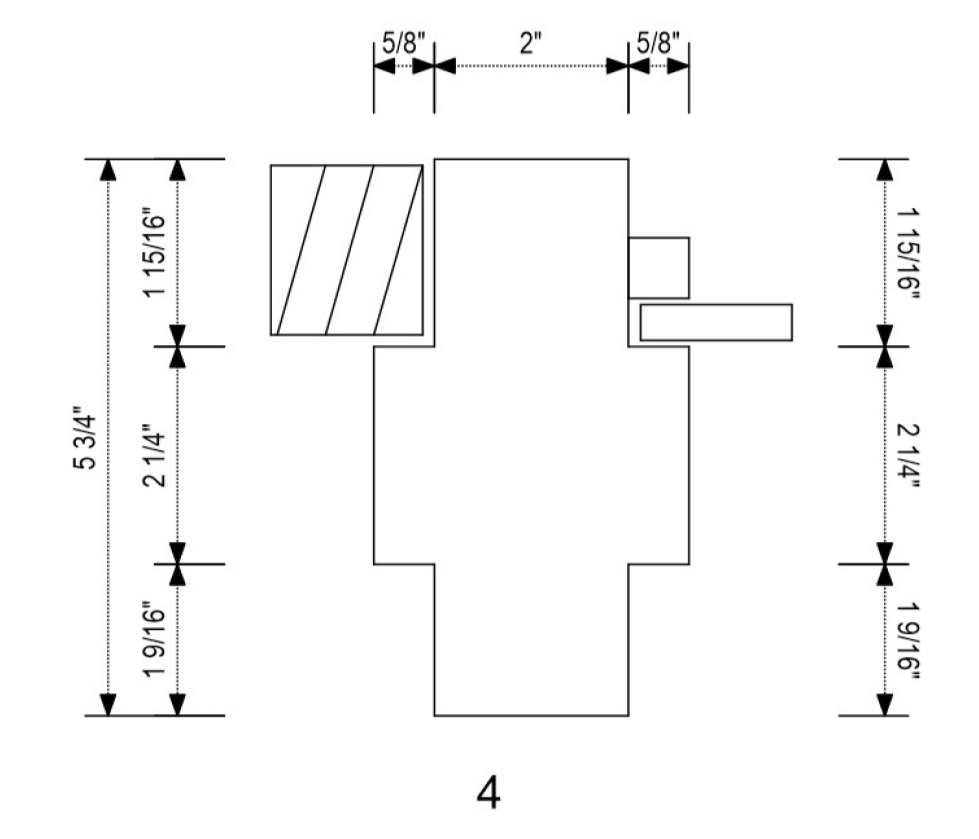

Divider Mullion Required To Achieve ¾Hr. Fire Rating Built in our shop. Various wall thickness available.
Fabricated in our shop to fit existing masonry or Concrete openings
Fabricated in our shop. Various heights and width customized to fit into existing masonry openings.

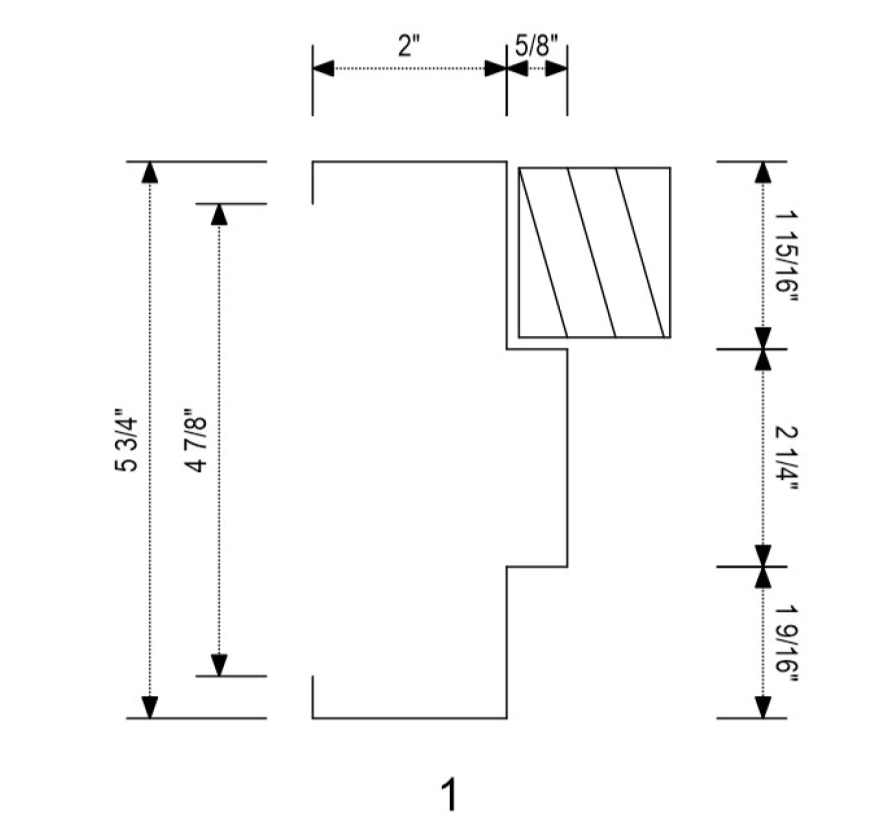

Latching Side of Frame

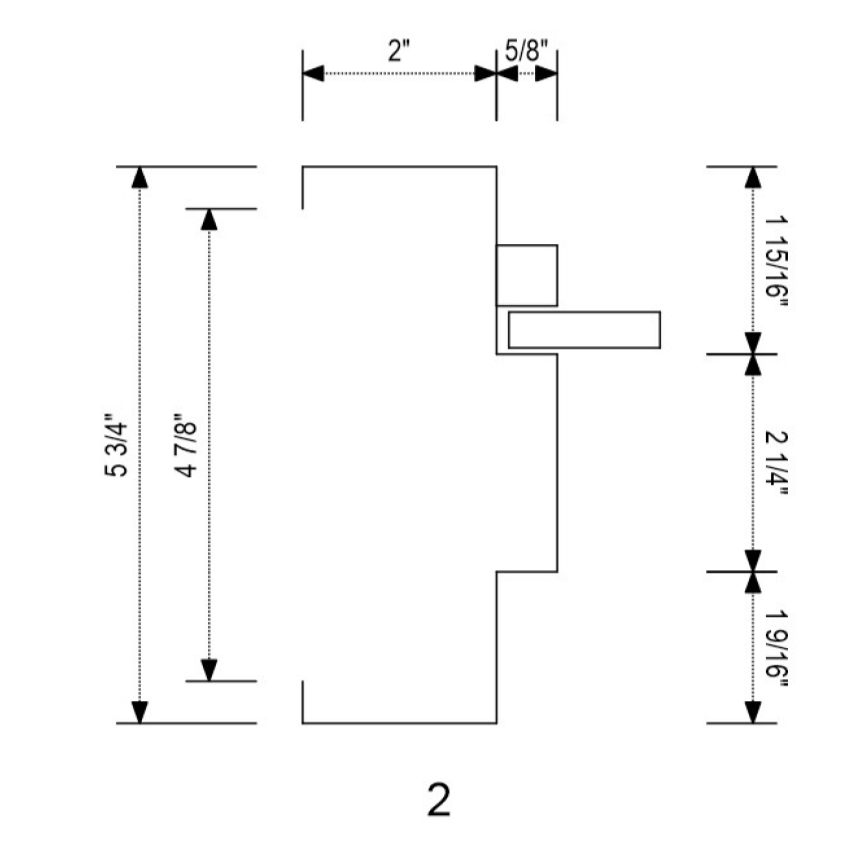

Mounting Side of Frame to Door with Either Mortise Butt Hinge or Continuous Hinge
Separates door from sidelite glass

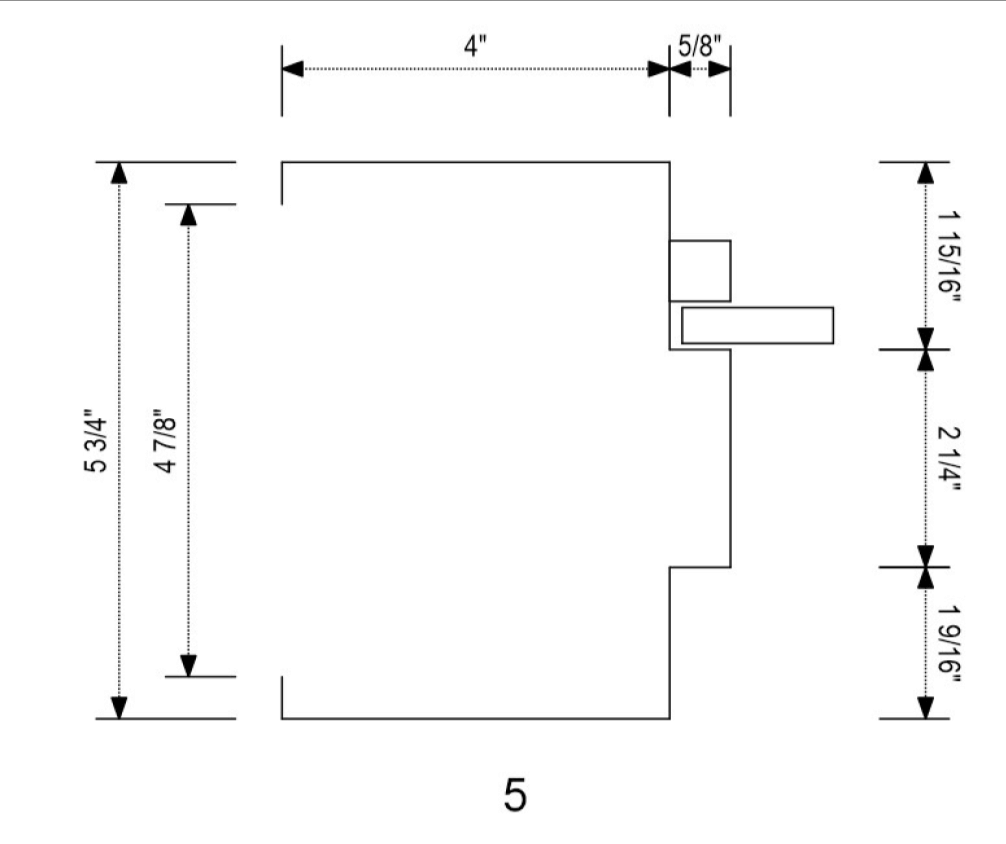

Used at bottom of sidelite glazing to raise glass up from floor level
Required when W1 Type Window Exceeds Allowable GPW Glass Size to Meet Fire Rated dimensions
Used when Multiple layers of drywall make up wall assembly

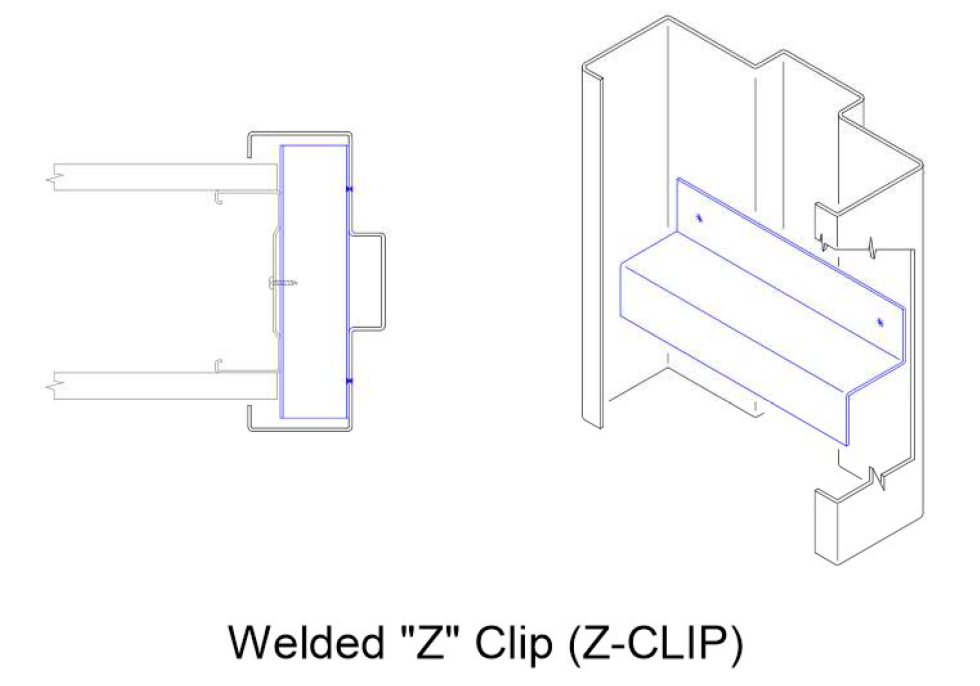

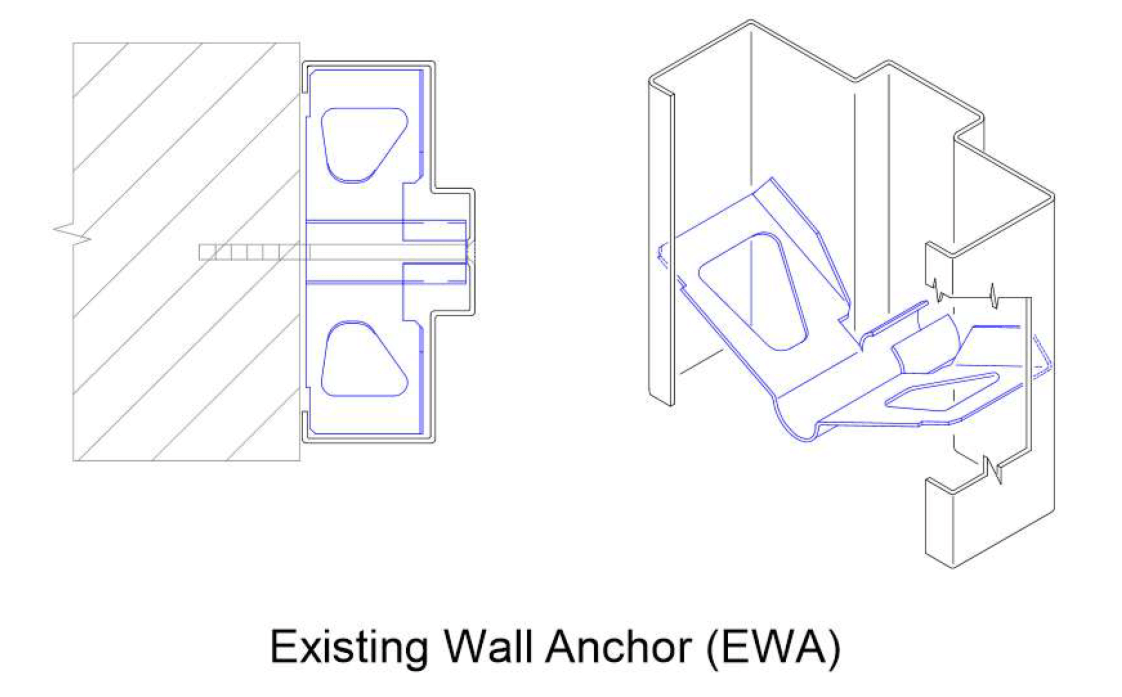

Anchors welded HM Frame to existing masonry or concrete wall

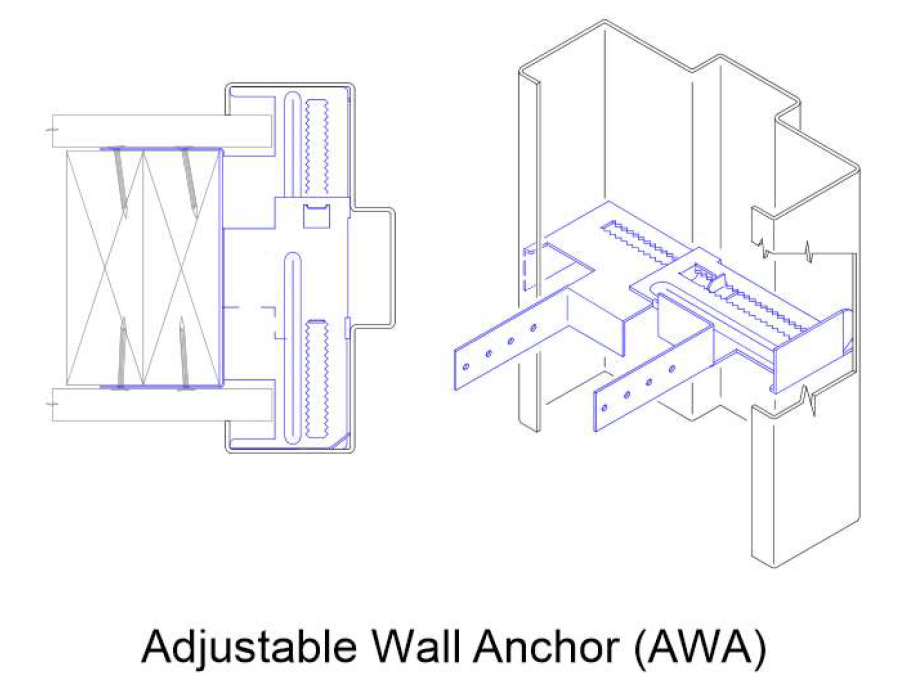

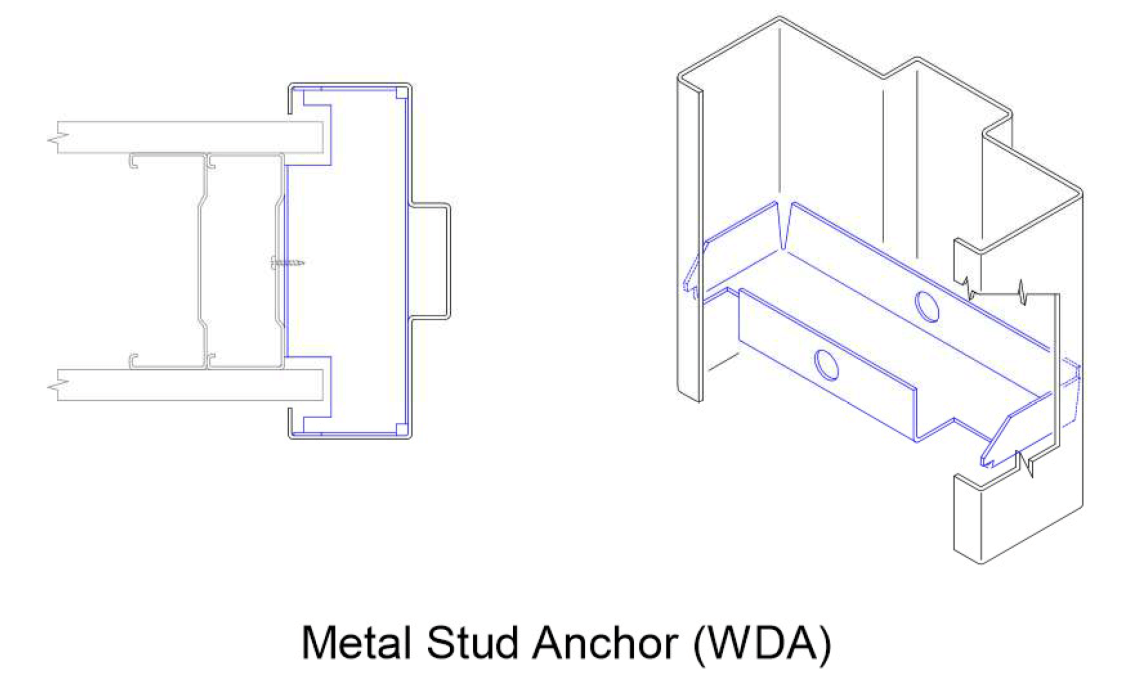

Anchors welded HM Frame to 3 5/8; Metal Stud
Required when HM Welded Frame Exceeds 8′ in height
